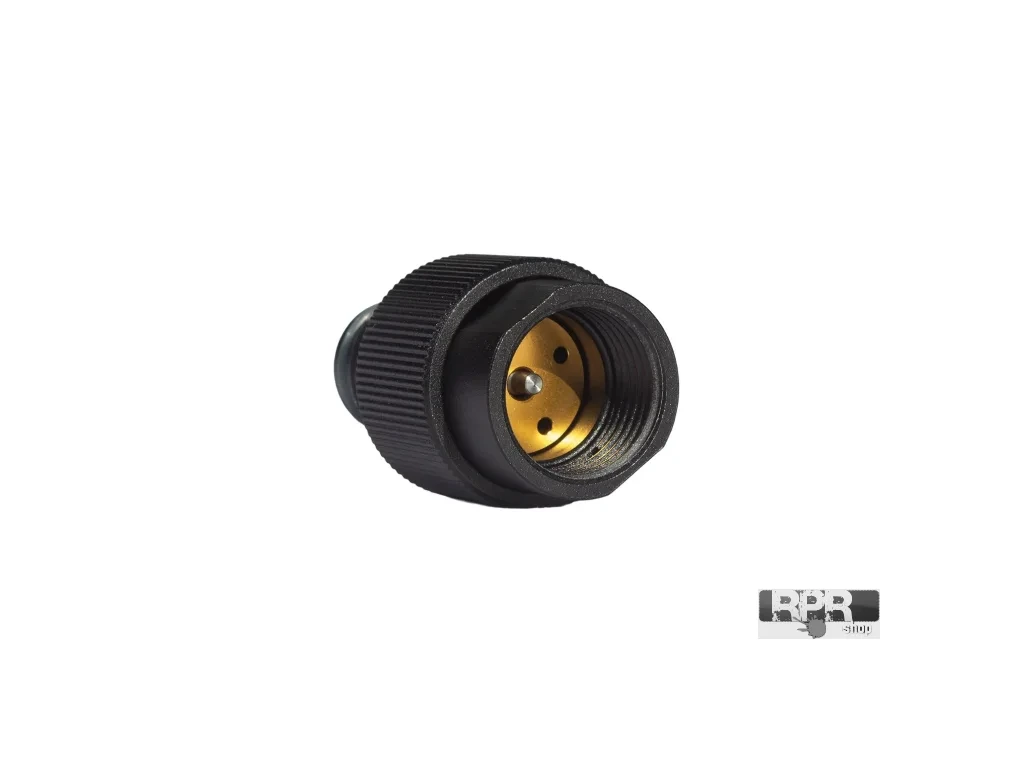

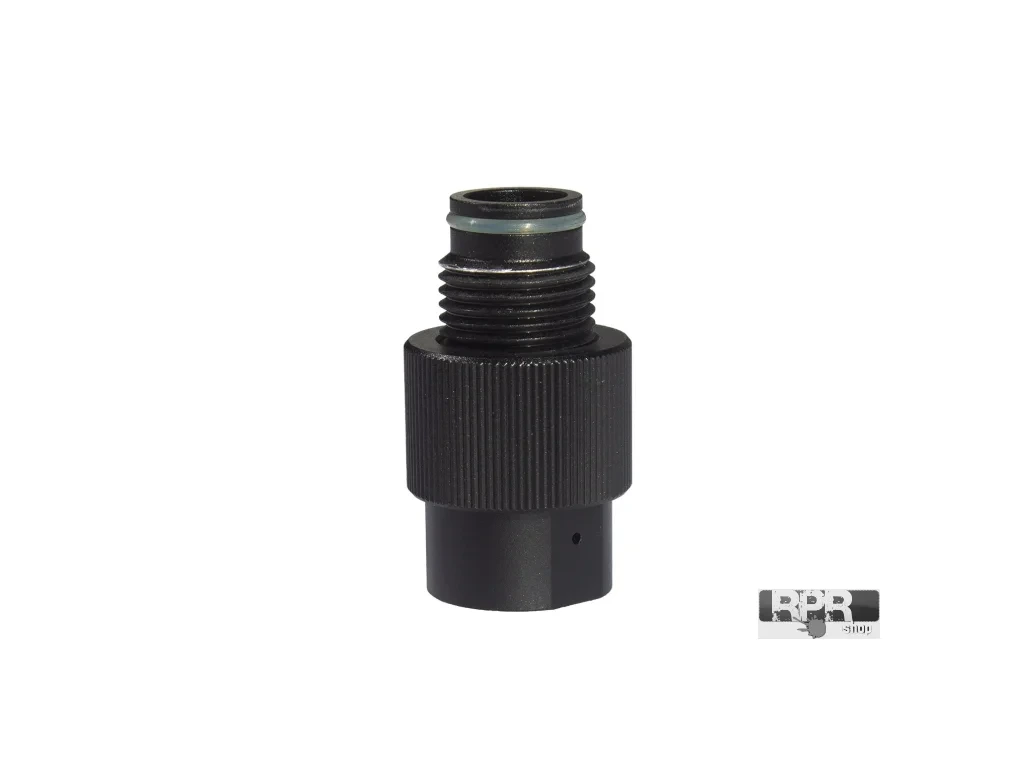

On/Off Bonnet/ASA Adaptor Black

On/Off Bonnet/ASA Adaptor Black: Smart Solution for Safe Air Control and Extended Seal Longevity

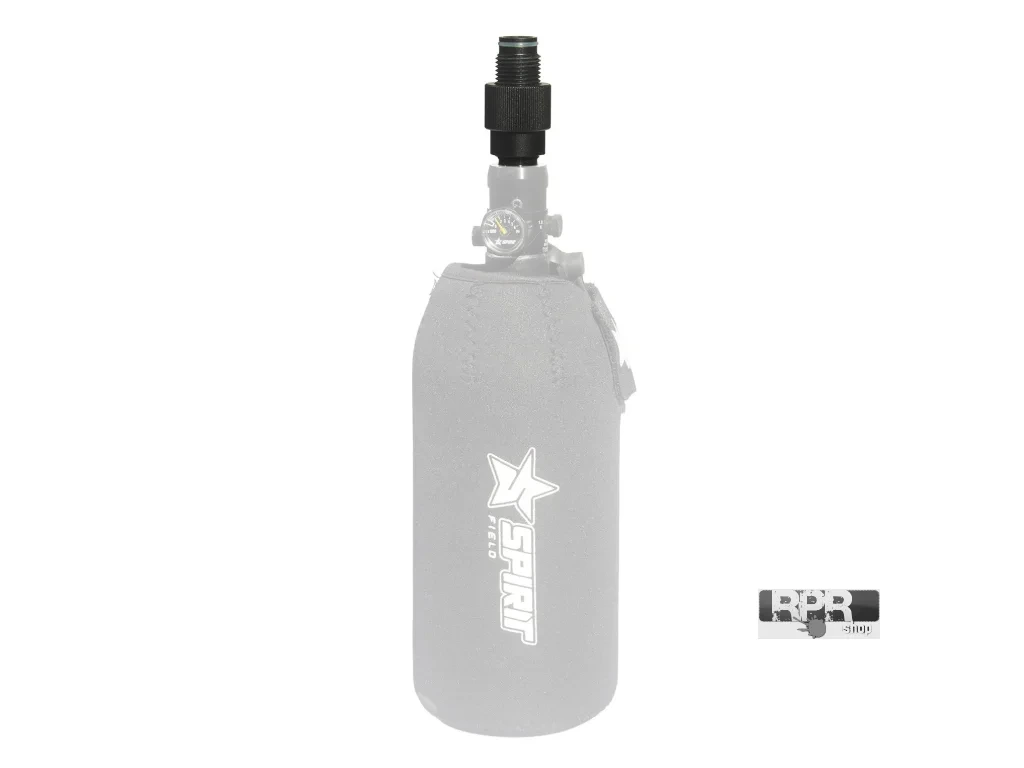

Do you want full control over the air supply in your marker while protecting expensive components of your air system? The On/Off Bonnet/ASA Adaptor Black is an indispensable upgrade and accessory adapter that installs between the air tank (regulator) and the ASA tank mount on your marker. This part revolutionizes the comfort of handling high-pressure air (HPA) or CO2.

The biggest issue with standard air systems is the necessity to screw the tank into the marker while the valve is under full pressure. This leads to extreme stress on the threads, rapid tearing of o-rings, and heavy handling. This on/off adapter in a sleek black finish completely resolves this issue. You simply screw the tank into the adapter in the "off" state, when the system is not pressurized. Only after it is fully screwed in do you activate the air supply by turning or pushing the valve. After you finish shooting, simply switch the valve to the "off" position, the air in the marker's system safely degasses, and you can unscrew the tank easily and without resistance.

Key Features:

• Reliable mechanical On/Off shut-off for instant activation or deactivation of the air supply
• Completely eliminates dangerous and strenuous tank twisting under full pressure load
• Significantly extends the operational lifespan of sealing o-rings in the marker's ASA and regulator
• Heavy-duty aluminum construction with hard black anodizing to prevent scratch wear
• Universal compatibility with standard ASA threads and HPA regulators
• Compact profile design that minimally alters the length of your air setup

Technical Parameters and Specifications:

• Product Name: On/Off Bonnet/ASA Adaptor Black
• Component Type: Compressed Air Adapter with On/Off Valve (ASA / Bonnet)
• Material: High-tensile aerospace-grade aluminum
• Surface Finish: Matte Black Anodized
• Thread Pattern: Standard ASA (G1/2-14) compatible with common markers and tanks
• Operating Medium: HPA (compressed air), CO2
• Condition: Brand new, supplied with internal sealing gaskets

Frequently Asked Questions (FAQ):

1. How exactly does this adapter help me save the seals inside my marker?
When you screw a standard tank into a marker, the pin inside the ASA adapter depresses the regulator valve pin roughly halfway through the threads. From that point on, you are forcing the tank against immense pressure (often over 800 PSI). This pressure grinds against the seals and threads, causing destruction and rapid wear. With this On/Off adapter, you mount the tank completely free of pressure. You engage the air flow only after it is fully seated, allowing the seal to settle smoothly without damage.

2. Can this adapter handle the high pressure output of 800-1100 PSI regulators?
Yes, the adapter is machined from solid aerospace alloy on precision CNC machinery and is rated for the standard output pressures of common paintball and RAM regulators (both HP and SHP systems). It easily manages the continuous pressure of HPA systems as well as the unique thermodynamic traits of CO2.

3. Does the marker automatically vent its remaining air when the valve is switched off?
Yes, the internal mechanism is engineered to release residual pressure trapped within the adapter itself and the marker's ASA chamber once the tank supply is closed (bleed feature). After turning the valve off, you can safely remove the tank from your setup with zero hazardous pressure remaining in the line.

Safety Guidelines and Warnings:

• When mounting the adapter onto the regulator, ensure all thread lines are clean and clear of debris.
• Never operate the adapter if it shows signs of physical damage, cracks, or if air is leaking around the body structure.
• During maintenance of internal o-rings, use exclusively silicone oil or grease approved for high-pressure air equipment.
• Keep stored safely out of reach of children.
